Double shut off, dry break quick disconnect - internal pin

Double shut off, dry break quick disconnect - internal pin

December 1, 2017

Beswick Engineering Co., Inc.

http://www.beswick.com/
Fluid Power

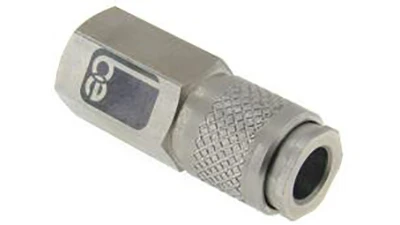

The Internal half Beswick series QB dry break quick disconnect assembly functions similar to a double shut-off quick disconnect however it provides a higher level of sealing during connection and disconnection. The dry break connects without leakage or fluid spray. Additionally, the design minimizes dead volume – the space between the internal and external ends when connected – to essentially eliminate any leakage when disconnecting.

Max. pressure rating: 500psig while connected; 200psig while connecting or disconnecting

Features

  • Snap connection and releasing sleeve disconnection
  • Both internal and external halves shut off when disconnected
  • Leak free connection and disconnection
  • QDI must be paired with a QDE half for a complete quick disconnect assembly
