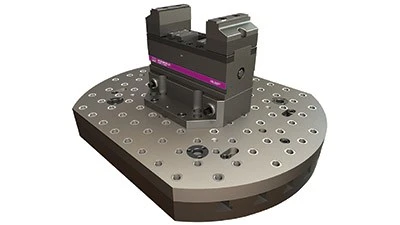

At IMTS, West Hall Booth 431663, see how faster, more accurate fixturing setups are realized with the CL5 5-axis workholding system. CL5 consists of three components: a subplate, a riser, and top tooling made up of a vise or a fixture plate. The subplate transforms a T-slot table into a modular fixturing plate, allowing flexible and easy clamping and locating of other tooling and/or fixtures. Every plate has built-in clamping and locating for risers, which allows for quick and accurate set-ups. Designed to get the part up from the machine table, the Quintus quick-change riser allows 5-side part access. The Quintus combines the riser, quick-change capability and precise location in one piece. No other accessories are needed. A range of either fixture plates or vises can be readily mounted on top of the Quintus. Several versions of fixture plates, vises and jaws are available.
