LEMO design change to the watertight (IP68) T series

LEMO design change to the watertight (IP68) T series

October 26, 2016


Connectors Design Design Components

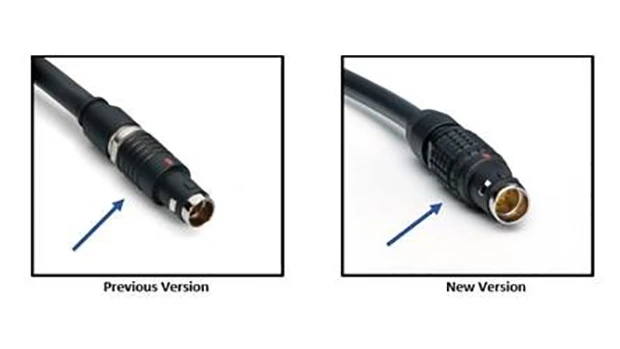

Rohnert Park, California - LEMO has recenlty made some design changes to the T Series watertight (IP68) connectors. The outer shell design changed to LEMO's standard look and the connector now has three latches vs. two.

The T Series offers an innovative design for the medical, defense/security, test & measurement, and any other market/application that requires a watertight connection. The T Series Connectors are small sized watertight connectors using the same original LEMO Push-Pull technology. Based on the LEMO B Series, the T Series includes a special construction with an inner-sleeve and extra sealing to enable IP68 water protection. The T Series is available in 2- to 9- contact configurations. Contacts can be terminated by soldering to the wire, crimping onto the wire, or directly to a PCB. A keying system ensures correct connector alignment and the connector outershell offers full EMI shielding.

As mentioned, the T Series utilizes the proven high-performance contact system and configurations from the highly popular LEMO B Series range, providing a very wide selection of options that can be made available quickly. It is backward compatible with the B Series, with the same receptacle panel-hole diameter, which will be a benefit to customers wanting to upgrade their existing designs.

The connector outershell is available in black-chrome finish or plated brass, making the product ideal for industries wherever the environmental conditions require ruggedized equipment. The T Series catalog can be found at: https://www.lemo.com/catalog/ROW/UK_English/T_series_en.pdf.

LEMO also provides raw wire & cable, cable assembly, prototypes and custom designs with the same uncompromising commitment to quality.

Source: LEMO Connectors
