Lightweight vitrified cBN wheels

Lightweight vitrified cBN wheels

October 28, 2016

Norton Abrasives

http://www.nortonindustrial.com

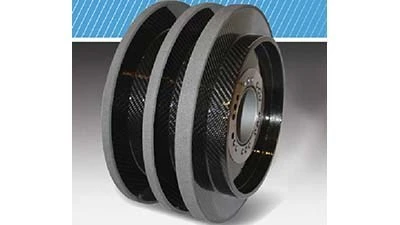

Worcester, Massachusetts – The CarbonForce lightweight line of vitrified cBN wheels for OD grinding have proprietary high-strength carbon fiber cores, making them 75% lighter than heavier steel-hubbed wheels and providing safety and performance-enhancing benefits.

With their lightweight carbon fiber core, CarbonForce wheels reduce labor costs and strain on the operator and often eliminate the need for a crane because they meet most safe lifting weight limits. The wheels exhibit high strength vs. centrifugal force and have been qualified to run at MOS of 31,496fpm (160m/s) for wheels with an OD >7.9” (200mm). In addition, the low thermal expansion of the carbon fiber increases safety and performance.

A robust, thermally stable lighter weight core includes vibration dampening technologies and an advanced vitrified cBN bond system. CarbonForce wheels require less operator intervention to control part quality, reducing dressing frequency and increasing wheel life.

The new Norton wheels provide dramatically reduced cycle times by allowing the operator to mount four CarbonForce wheels vs. one steel rim wheel onto a four-phase cam shaft for simultaneous grinding of all four lobes in one operation. Cycle time, changeovers, dressing frequency and labor costs can all be reduced by up to 75% by changing out all four wheels.

The lightweight design of CarbonForce wheels extends bearing, spindle, and overall machine life and reduces power draw and energy consumption for acceleration and deceleration in linear and rotary movement. All wheels are also equipped with a steel bushing to ensure long life of the wheel bore.

CarbonForce wheels are made to order with a maximum diameter of 1,000mm and a maximum width of 650mm. Large, complex wheel set designs are available with
