Qosina barbed check valves

Qosina barbed check valves

October 3, 2016

Qosina Corp.

http://www.qosina.com
Design Design Components Valves

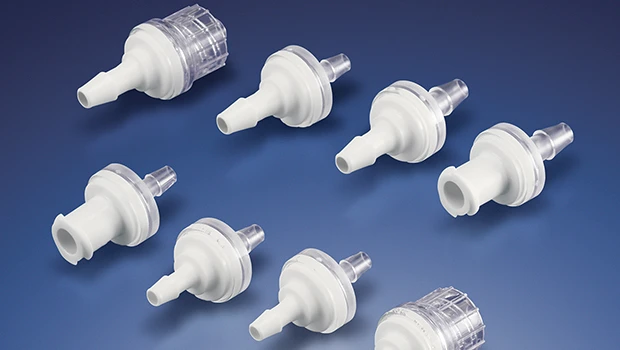

Ronkonkoma, New York – Qosina offers the addition of eight new barbed check valves to complement its extensive line of stock components. Available in three different configurations, these barbed valves have a low, 0.087psi cracking pressure. The barb to barb straight and reducing configurations (#80500 - #80503) accommodate 1/8" (0.125", 3.2mm) and 3/32" (0.093", 2.4mm) ID tubes and are made of MABS and silicone.  The female luer lock to barb and the barb to male luer lock configurations (#80504 - #80507) are made of SAN, MABS and silicone. Products #80504 and #80505 feature a female luer lock inlet while products #80506 and #80507 have a male luer lock outlet. Both choices offer the option to use 1/8" (0.125", 3.2mm) or 3/32" (0.093", 2.4mm) ID tubing.

Ideal for infusion, drainage and irrigation applications, they provide controlled directional flow, and eliminate the need for bonding. All versions are ETO and gamma sterilization compatible and are also Reach and RoHS compliant as well as Class VI and ISO 10993 approved.

Source: Qosina
