GPS-30B Cylindrical Grinders

GPS-30B Cylindrical Grinders

July 8, 2016

Shigiya (USA) Ltd.

http://www.shigiya.com
Grinding/Abrasives

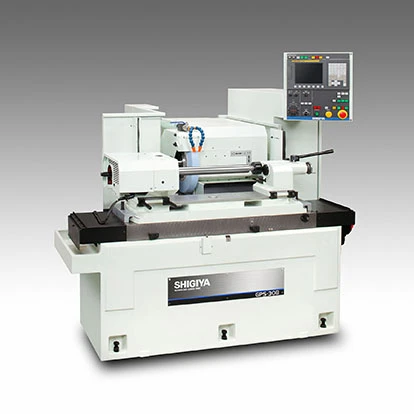

Schaumburg, Illinois –  An ideal entry-level model, SHIGIYA (USA) LTD.’s all-new GPS-30B CNC Cylindrical Grinder offers high quality performance at an affordable price.


Check out the 2016 IMTS Conference!


For exceptional accuracy and ease of operation, the GPS-30B is built with Shigiya proven and cutting-edge technology. A streamlined machine design, using common parts, and an efficient machine manufacturing process reduce costs and increase affordability.

The GPS-30B boasts a range of high quality and rigid features to allow for heavy and precise grinding. In fact, Shigiya developed their own bearing grinder to grind the GPS-30B’s non-concentric hydrodynamic bearings and ensure their rigidity and precision.


GPS-30B wheelhead and table head sliding surfaces have wide V and flat slide ways that provide sufficient rigidity and load capacity. The high dampening performance and equalization of the lubrication oil provided by the oil film’s squeezing effect help the grinder maintain precision and smooth operation for decades. To prevent thermal displacement due to an increase in lubrication temperature, the wheel spindle oil is stored in an isolated tank. Because the wheel dressing device is mounted onto the lower table of the GPS-30B, there is no need to change dressing coordinates. A non-swivel wheelhead with a highly rigid main body and large diameter wheel spindle is available as an option.


For added convenience, Shigiya’s exclusive interactive conversational programming system requires virtually no programming knowledge to operate. The system automatically sets up optimum grinding patterns and conditions after an operator enters numeric figures for three items. The system accommodates a wide variety of grinding and dressing patterns to facilitate high-precision cylindrical grinding. Data for up to 47 work pieces can be stored with maximum steps. Tolerance input is possible at the submicron level. A variety of alarm functions are included to prevent human error.


The GPS-30B can change speed steplessly on the AC servomotor within a range of 15 – 600 rpm. Optimal rotational speed can be automatically determined by the interactive automatic programming system. To achieve high precision heavy grinding, the manual tailstock is mounted with a large diameter spindle that has been precisely processed.


The GPS-30 features a ø 300mm swing over table, maximum grinding diameter of 300mm and 500 - 2000mm distance between centers. Models with up to 750mm center-distance come equipped with a compact workhead and tailstock units.



Source: Shigiya Ltd.
