LCS 50 Laser MicroJet machine

LCS 50 Laser MicroJet machine

April 19, 2017

Synova USA

http://www.synova.ch/
3D/Additive/Alternative

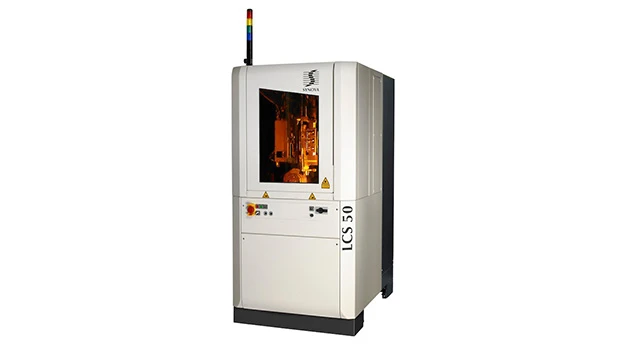

The LCS 50 with 3 or 5 axes is Synova’s most compact and cost-efficient Laser MicroJet machine. The LCS 50 is for finish-machining small work pieces that require precision cutting, drilling, grooving or slicing as well as 3D processing.

The machine uses linear motor axes (LCS 50-3) and additional B and C rotary axes with torque motors enabling 3D cutting and shaping (LCS 50-5).

The CNC machine system includes a high-power green laser, a compact high-pressure water pump with an ultra-pure water unit, a touch-screen control panel, a touch probe, and a vision system with motorized zoom.

Materials

  • Hard materials: Polycrystalline CBN (PcBN), polycrystalline diamonds (PCD), monocrystalline diamonds (MCD), chemical-vapor-deposition (CVD) diamonds, natural diamond (ND), tungsten carbide (WC)
  • Metals: Stainless steel, Durnico, CuBe, copper, brass, aluminum, shape-memory alloys (Nitinol), titanium, nickel, super alloys etc.
  • Ceramic: Zirconia (ZrO2), LTCC (low-temperature co-fired ceramic), Aluminum-nitride (AlN), Aluminum-oxide (Al2O3)

Operations

  • 3-axis machine: 2D cutting, drilling, slicing, grooving
  • 5-axis machine: 3D shaping, cutting, drilling, slicing, edge grinding (K-land edges, single or multiple clearance angles), grooving, milling, engraving, profiling
