The TDK-Lambda medical and ITE certified DTM300-D external power supplies series offers a choice of Class I or Class II (no ground connection) inputs and meets the stringent Level VI DoE standards for efficiency and off-load power.  The DTM300-D is certified to both the medical IEC 60601-1 and ITE IEC 60950-1 standards, making it suitable for a variety of power hungry medical, industrial, and test and measurement applications.

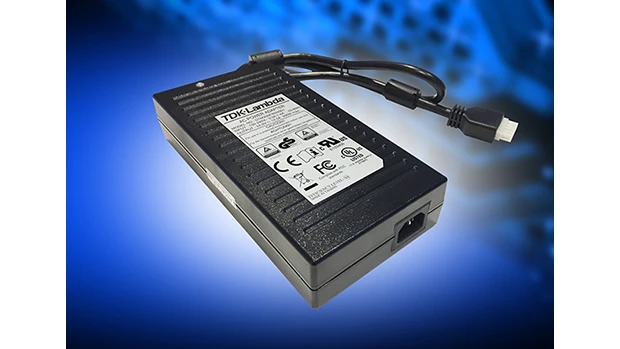

The convection-cooled DTM300-D is housed in a rugged, vent-free enclosure, measuring 222mm x 112mm x 45mm (LxWxH).  AC is applied using the standard IEC 60320-C14 (3-prong) or 60320-C18 (2-prong) connector and DC provided through a ten-pin Molex Mini-Fit connector.  Other connectors are available upon request.  The adapters also feature over-voltage and over-current protection.

Accepting a 90 to 264VAC input, the 300W adapters are available with 12V, 19V, 24V, 28V, 48V, and 54V outputs and can operate in ambient temperatures ranging from -30°C to +60°C (derating linearly to 50% load from 40°C to 60°C).  In addition to satisfying DoE Level VI requirements with an average efficiency of greater than 88%, the power supplies have an off-load power draw of less than 0.5W.

The DTM300 has been certified to IEC/ES/CSA/EN60601-1, IEC/UL/CSA/EN60950-1 and carries the CE mark for the Low Voltage, EMC and RoHS2 Directives.  All models meet EN60601-2, IEC60601-1-2 Ed4:2014, EN55011/EN55022 Class B, EN55024 Class B, FCC Part 15 Class B, FCC Part 18 Class B emissions and immunity standards.  Input to output isolation is 4,000Vac (2 x MoPP), with a touch current of <100µA.  Class I models are suitable for BF rated equipment with an output to ground isolation of 1,500Vac.

Major applications
Medical diagnostic, imaging and monitoring equipment, industrial and test and measurement.

Main features and benefits

  • Compliant with DoE level VI requirements
  • < 0.5W off-load power
  • Medical and ITE certifications
  • Class I or Class II (no ground connection) inputs

Major specifications

Model



DTM300-D

Input voltage

Vac

90 to 264Vac

Output voltages

Vdc

12V, 19V, 24V, 28V, 48V, & 54V

Output power

W

300W

Safety certifications

-

IEC/ES/CSA/EN60601-1, IEC/UL/CSA/EN60950-1

Size (H x W x L)

mm

45mm x 112mm x 222mm
