FlatScope – 2D measurements take flight

FlatScope – 2D measurements take flight

May 11, 2017

Werth Inc.

http://www.werthinc.com
Quality/Metrology

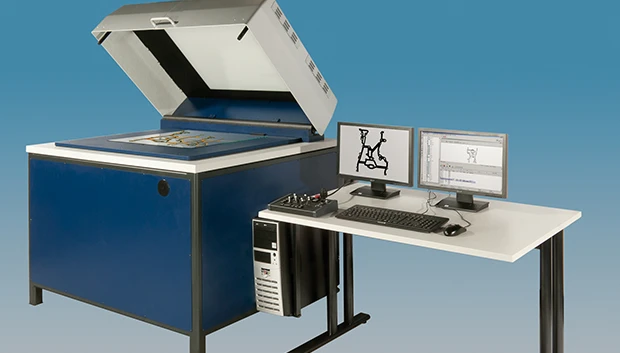

The Werth FlatScope offers rapid optical measurement of 2D components with high precision requirements. The constant measurement plane, automatic detection of component orientation, the raster scanning, and OnTheFly operating modes minimize cycle times. With the raster scanning operating mode, the measurement range is not limited to the field of view of the optics. A measurement range of 400mm x 200mm can be measured at a resolution of up to 100 megapixels in just a few seconds. The machine is available with a measurement ranges up to 650mm x 600 mm.

The Werth Flatlight telecentric backlight light system is mounted in the machine hood. The controller is integrated in the machine with thermal insulation to save space in a shop floor environment.
