Piezo nanopositioning stage

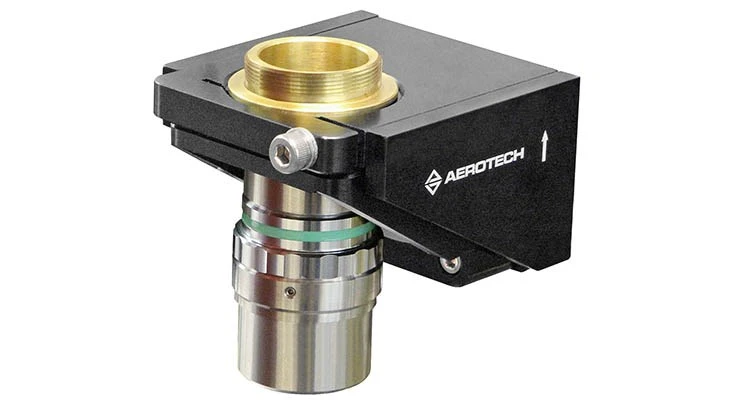

Pittsburgh, Pennsylvania – Aerotech’s QFOCUS QF1 piezo nanopositioning stage offers microscope objective and optics positioning with nanometer-level precision at high speeds. With ultra-precision capacitive sensor feedback and high structural stiffness, the QF1 is for demanding scanning applications, microscopy, or any optical application requiring high precision and throughput.
The QFOCUS QF1 is guided by precision flexures that are optimized using finite element analysis to ensure high stiffness and long device life. The resulting design offers outstanding stiffness and resonant frequency, enabling high process throughput and fast closed-loop response. The QF1 has been designed to provide excellent geometric performance (straightness and angular errors) for critical microscopy and optics positioning applications.
The QF1 has the option of closed-loop feedback using a capacitive sensor for sub-nanometer resolution and high linearity. The capacitive sensors measure the output of the positioning carriage directly, enabling superior accuracy and repeatability.
When coupled with Aerotech’s Q-series controllers and drives, the QF1 offers sub-nanometer positioning resolution and in-position stability (jitter), and high positioning bandwidth. Aerotech’s Dynamic Controls Toolbox and Motion Designer software packages provide advanced tools such as Learning Control, Harmonic Cancellation, and Command Shaping, providing improved tracking errors and faster step-and-settle times. OEM drive options are also available.
The QFOCUS QF1 is available with threaded adapters to fit most microscopes and objectives. The microscope turret mounting allows for fast positioning of the QF1 at the desired orientation. The QF1 is available with a clear aperture of up to 29mm.
Custom stage designs, travels, and threaded adapters are available.
Source: Aerotech Inc.
