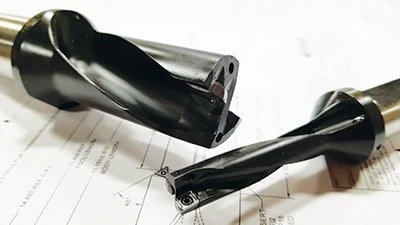

Allied Machine & Engineering’s 4TEX drill
Engineered to create optimal chip formation for efficient evacuation in holemaking processes, the drill outperforms other standard drills by delivering higher penetration rates in light duty machines. 4TEX excels in challenging applications that include interrupted cuts or drilling high temperature alloys and stainless steels. The indexable insert drill is ideal for making shallow 2xD, 3xD, and 4xD holes in the 0.472” to 1.850” (12mm to 47mm) range.
The 4TEX drill’s design increases core strength, improving hole size and straightness. The flute space of the internal cutting edge side, where chips often cluster, is 1.6x larger than typical IC drills. Dual-twisted coolant outlets improve penetration rates by enhancing coolant flow and generating superior chip evacuation.
The insert geometries are optimized for wear resistance and are available in geometry/coating combinations for all ISO materials including steel, stainless steel, high temperature alloys, non-ferrous, and iron. The distinctive insert shape improves surface finish, hole quality and penetration rates, while eliminating issues from chips winding around the tool. The drills are stocked in both imperial and metric shanks with standard fractional diameters, as well as every ½ mm diameter up to 26mm and every 1 mm up to 47 mm assuring fast delivery.
