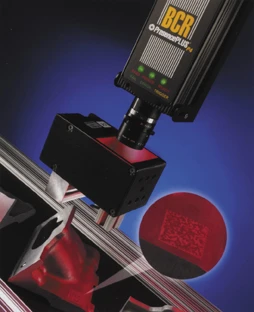

PresencePLUS P4 BCR vision sensor from Banner Engineering Corp. reads advanced 2D and 1D bar codes including Data Matrix ECC200 and PDF 417, as well as linear codes such as Code 39, Code 128, Codabar, Interleaved 2 of 5, EAN-8 and EAN-13.
The compact, self-contained P4 BCR is available with two lens positions: in-line (on the end of the housing) and right-angle (on the side of the housing). Both versions measure 66.8 mm wide; the in-line model is 136.1 mm long and the right-angle model is 124.5 mm long. The included mounting brackets make it easy to attach the P4 BCR sensor to machines and conveyors. The unit's three bi-color LED indicators clearly show unit status during setup and operation.
