High-resolution linear stages go the distance

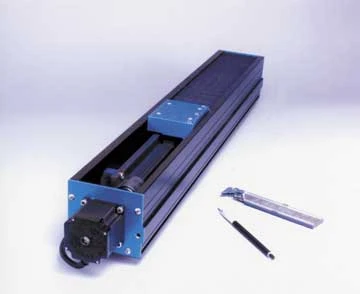

High-resolution, low cost linear stages to 8 ft. long have been introduced by H2W Technologies Inc. These 1.0 micron resolution stages feature exceptionally long life without the need of adjustment, lubrication, or maintenance.

The integration of a splined linear guide and leadscrew results in a torsionally stiff stage that can be operated in either a horizontal or vertical axis. According to the company, these stages are well suited for pick-and-place, parts transfer, water jet cutting, laser cutting and etching, inspection, testing, packaging, and assembly applications.

Designed for loads up to 100 lbs. (45Kg) and speeds up to 30 in/sec. (762 mm/sec.), the stages can be specified in compound multi-axis configurations such as an X-Y-Z axis gantry robot. To suit the requirements of an application, a variety of stepper motors, DC brush and brushless motors, or AC motors can be mounted to the stage.

Options to enhance performance and ease integration into a new or existing application include: custom drilled and/or tapped holes in the stage and/or carriage; end of travel limit switches which can disable the amplifier, linear encoder, cable carrier, and protective bellows.

H2W Technologies Valencia, CA h2wtech.com
