Haas Small-Footprint Y-Axis Turning Center

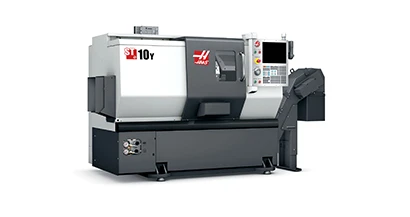

The ability to turn and mill complex parts and perform multiple operations on one machine increases throughput, reduces handling, and improves accuracy. The Haas ST-10Y is a small-footprint Y-axis turning center that provides 4" of Y-axis travel (± 2" from the centerline) for off-center milling, drilling, and tapping, and comes standard with high-torque live tooling and a servo-driven C-axis for versatile 4-axis capability.

The ST-10Y provides a maximum cutting capacity of 9" x 14", with a swing of 16.25" over the cross slide. It is equipped with a 6.5" hydraulic 3-jaw chuck and a 12-station VDI turret. The ST-10Y’s A2-5 spindle nose has a 2.31" spindle bore and a bar capacity of 1.75". The machine’s 15 hp vector dual-drive spindle turns to 6000 rpm, and provides 75ft/lbs of torque. On-the-fly wye-delta switching yields a wide constant-horsepower band for constant surface feed cuts, and 1200ipm Z-axis rapids reduce cycle times.

Standard equipment on the ST-10Y includes high-torque live tooling with C axis, rigid tapping, spindle orientation, a 15" color LCD monitor, and a USB port. Available high-productivity options include a belt-type chip conveyor, a manual tailstock with hydraulic quill, an automatic tool probe, an automatic parts catcher, high-pressure coolant systems, and much more.
