Mitutoyo’s One-Click Quick Image 2D vision measuring systems

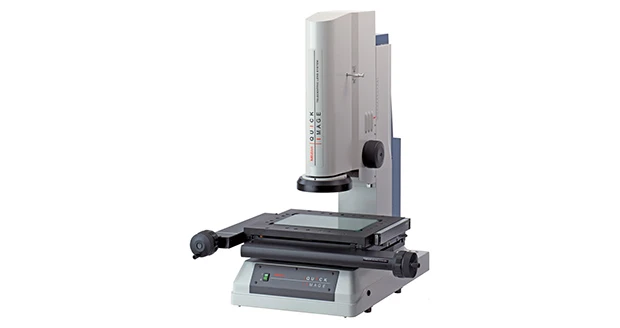

Aurora, Illinois – Mitutoyo America Corp. officials announce the latest version of the Quick Image series 2D vision measuring system. Two new systems with advanced one-click measuring functionality – available with 0.2X or 0.5X magnification – have been added to the lineup.

The Quick Image Telecentric lens design offers a wide field of view and depth of focus, enabling easy measurements on workpieces with multiple step heights. A new one-click measurement function enables measurement and tolerance judgment with a single mouse click. This function enables automatic detection of a workpiece position and inclination, and batch measurement of multiple parts with the same shape, up to a maximum of 1,000 workpieces at one setting. Measurement results are displayed in real time directly on the video image, which enables tolerance limits to be seen at a glance. With improved measurement accuracy, Quick Image ensures class-leading quality and capability. High-luminance with built-in LED lighting and a 3-megapixel color camera enable observation and measurement using high-resolution images.

Additional key features:

• Easy mode for operation for entry-level users
• Switch between large-focal-depth mode (normal) and high-resolution mode
• Wide field, rapid batch and high-accuracy measurement
• User defined overlay templates
• Large line up of X, Y stage sizes

Source: Mitutoyo America Corp.
