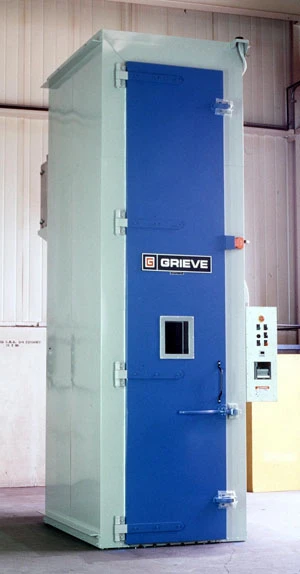

No. 986 is an electrically-heated, 500ºF (~260ºC) vertical airflow walk-in oven from Grieve, currently used for curing composite parts at the customer’s facility. Workspace dimensions measure 30” W x 24”D x 144”H. 30KW are installed in Incoloy sheathed tubular elements to heat the unit, while a 4200 CFM, 3-HP recirculating blower motor provides combination airflow to the workload.
This unique Grieve walk-in oven features 4” thick insulated walls, aluminized steel exterior and Type 304, 2B stainless steel interior. The floor of the workspace is reinforced to accommodate 200 lb. loads. An 8” x 10” double-pane Pyrex window for load inspection and an interior oven light are also onboard. All safety equipment required for handling flammable solvents, including explosion-venting door hardware, are included on this unit, as well.
No. 986 is built to JIC/NEMA 12 electrical standards. Controls include a digital programming temperature controller, manual reset excess temperature controller with separate contactors and recirculating blower airflow safety switch.
For more information, please contact: THE GRIEVE CORPORATION, 500 Hart Road, Round Lake, Illinois 60073-2835 USA. Phone: (847) 546-8225. Fax: (847) 546-9210. Web: www.grievecorp.com
Email: sales@grievecorp.com Attention: Frank Calabrese.
