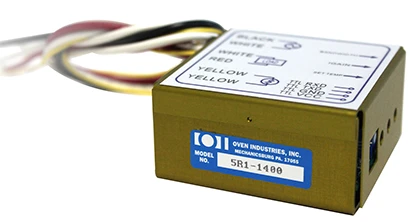

Oven Industries announces the new 5R1-1400 AC Temperature Controller with the integrated potentiometers or via a PC through the TTL level UART Communication port. This compact design measuring 2-1/2" square can deliver up to 15AMPS of load current from a zero voltage switched, low noise solid state relay. Operator safety is achieved with 1KV of AC line power isolation for the communication port and sensor input. Specifications: Input Voltage 85 to 265VAC 50/60Hz, temperature resolution 0.1°C and Ambient Temperature Operation -20° to 70°C.
Features
- Universal AC Input
- Integrated Poteniometers for Set Temp and PI Control
- PC Programmable Set Temp and PID Control
- TTL Level UART Communication Port
- Set Temp Range Determined by Thermistor Type
- Open Sensor Protection
Accessories
- USB to TTL Interface Cable Model # OI-TTL-CABLE
- Flange Mount Model # 5R1-1400FL
- Temperature Sensor
