Amherst, New York – Allied Motion announces the availability of a new high speed brushless motor engineered specifically for the rigors of medical ventilator duty.

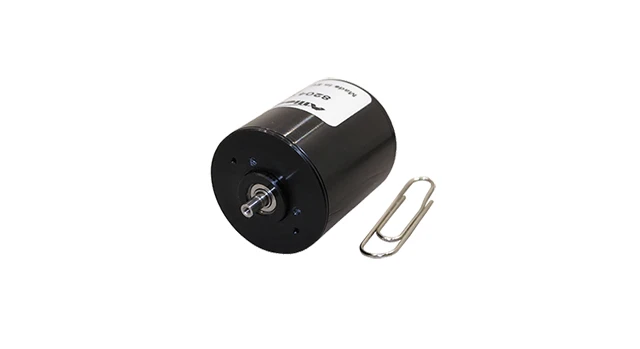

The new 28mm, 24V ResMax 28 brushless motor is engineered to achieve very high speed (up to 90,000rpm) with great dynamic responsiveness (0rpm to 50,000rpm in only 20ms, unloaded), exceptional operating life (30,000+ hours at 40,000rpm average speed), maximal efficiency (up to 90%), rated power of 46W, and the ability to operate in an oxygen-rich environment. The motor is equipped with integrated Hall-effect sensors to provide commutation information and a NTC thermal sensor to monitor motor temperature.
The ResMax's unique stator design provides it with highly effective heat transfer from the stator to housing, resulting in a low thermal resistance of just 1.2°C per W.
The ResMax 28 also has an innovative rotor design with high magnetic material fill, possessing a very low inertia of only 0.5E-7kgm2, giving the motor its low mechanical time constant of only 20ms and high dynamic performance capability. In addition, superb balancing minimizes audible noise and vibration even at high speed (up to 90,000rpm).
Although designed for medical ventilator and respirator use, the ResMax 28 is also ideal for any application benefiting from its high speed and high dynamic performance capabilities. Allied offers customizable electronic drivers for the ResMax 28 to tailor the combined package for specific applications.
Source: Allied Motion
