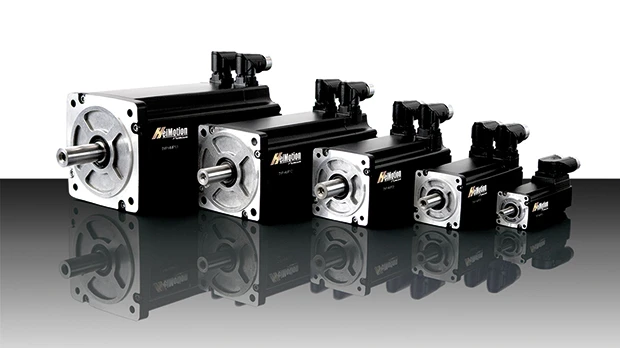

Amherst, New York – Allied Motion Technologies introduces the HeiMotion Premium (HMP) brushless AC servo motor family. HeiMotion is available in five metric frame sizes with rated torque from 0.12Nm up to 14.4Nm, and continuous shaft power from 50W to 3.75kW. It offers highly accurate torque ratings, energy efficiency and extraordinary durability (20,000+ hour life span). An innovative compressed winding technology allows for a compact size, as well as lower production costs compared to competitive motors. The series is highly configurable in thousands of combinations to fit virtually any application. It is engineered for use in the machine tools, autonomous vehicles, robots, medical diagnostic equipment, and similar high-performance applications.
HMP series highlights include:
- Standard flange sizes: 40mm, 60mm, 80mm, 100mm, 130 mm
- Top speed ranging from 2,000rpm up to 9,000rpm
- Holding torque ranging from 0.18Nm up to 18.5Nm
- Winding voltage choices ranging from 48V up to 560V
- Optimized inertia
- Extremely low cogging torque
Optional features include: standard resolver or encoder (including single cable HIPERFACE - DSL interface), holding brake, and connector choices
