Numerous details have been made to perfection from inside to outside of the machine,giving you more an even slicker exterior, more user-friendliness and added durability. Enjoy added features such as: easity detachable splash guard, dual-speed pulley, enlarged cross link, scrap-free vise plates, multi-voltage transformer and more!
Secure vise clamping and smooth material feeding
-
Scrap-free vise plates
-
Double retracting vise
-
Full stroke hydraulic cylinder
-
Split front vise
-
Optional hydraulic top clamp
Rigid dual columns and extra-supportive cross link

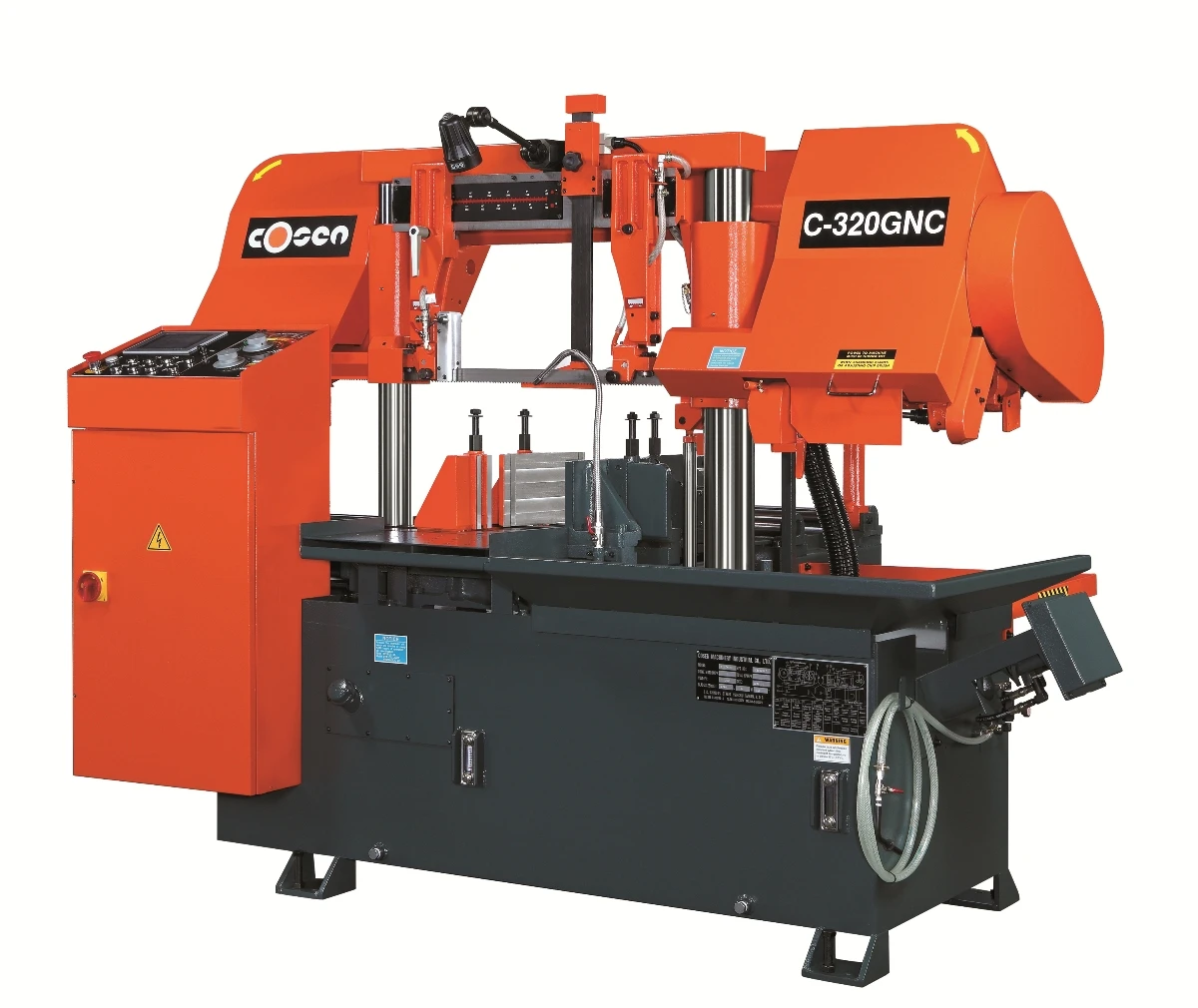

The gantry type C-320GNC features two large-diameter round columns for maximum amount of support to the saw frame. The enlarged cross link on top adds to great structural strength.
Smart NC-100 Technology featuring
- 5.7" HMI touch screen
- Word-class PLC
- 100 individual jobs can be programmed and stored
- Automatic kerf loss compensation
- Automatic multiple indexing
- "Save-a-Blade" feature
- Convenient access to blade speed, blade life and error diagnosis
- Automatic machine shutoff...and more!
