5-axis workholding system

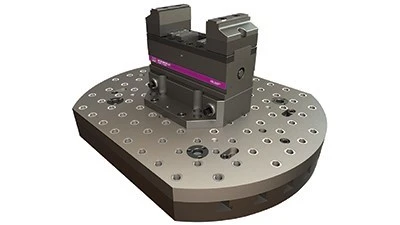

The CL5 5-axis workholding system consists of a – subplate, riser, and top tooling made from a vise or a fixture plate. The subplate transforms a T-slot table into a modular fixturing plate, allowing flexible and easy clamping and locating of other tooling and/or fixtures. Every plate has built-in clamping and locating for risers, allowing for quick and accurate setups. The Quintus quick-change riser allows 5-side part access to remove a part from the machine table. The system combines the riser, quick-change capability, and precise location in one piece. Several versions of fixture plates, vises, and jaws are available. See Carr Lane at IMTS 2018 in Booth #431663.
