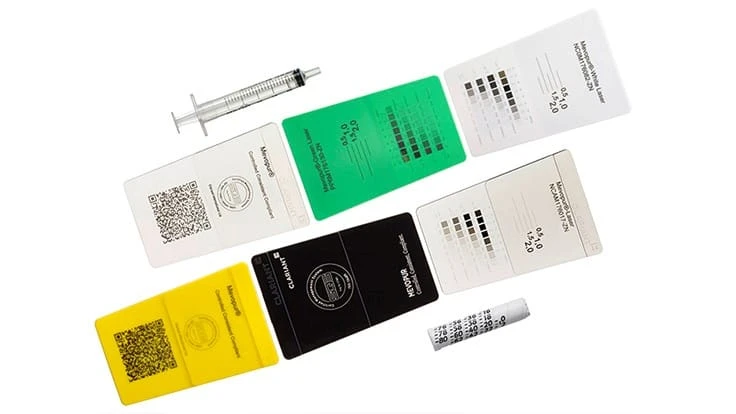

Clariant Healthcare Polymer Solutions’ availability of medical-grade polymer compounds and concentrates for laser-welding, marketed under the Mevopur brand name covering Clariant’s medical grade materials, were displayed at MD&M West 2020.
Laser-welding offers numerous advantages in medical and diagnostic applications in terms of speed and reliability but if the combination of polymer, colorants, part design, and processing techniques are not considered in the earliest stages of product development, weld consistency can suffer, and the risk of product failure may become unacceptable.
Compared to other methods of assembly, laser welding can develop a high-strength bond, without many of the disadvantages of other methods. For example, surfaces do not require pre-treatment and the risk of creating potential leachables from solvent residues or adhesive is eliminated. In addition, high-speed joining of even complex geometries is possible with minimal stress in the joints. Welded components can survive repeated sterilization, if necessary.
Color choices play a critical role in the ability of one part to transmit laser energy, and the other to absorb laser energy and melt at the bond line. In many applications, color decisions are taken only in the later stages of the development cycle by the marketing team or others not involved in the functional design process. When laser welding is involved, this introduces considerable and unnecessary risk and complexity.
Clariant takes a Quality by Design approach with its customers, according to Steve Duckworth, global head of marketing & business development. “Our team of experts has a thorough knowledge of pigment and additive options for absorbing and transmitting parts, so we can give different color options in a wide range of polymers including polypropylene, ABS, polycarbonate, PC/ABS blends, and more. In collaboration with laser equipment suppliers, we’ve developed analytical techniques that can be used to screen different solutions to find the best one.”
Once an optimal color has been selected, the distribution of pigments and additives in the plastic component and part-to-part consistency become important. Although masterbatch concentrates added to the host polymer during processing may be convenient for introducing color, the processing equipment, (e.g., injection-molding machines), and the flow-path in the tool, may only allow for poor or inconsistent distribution of the pigments at the targeted weld-line. Using a fully compounded ready to use material may help solve this distribution problem.
Mevopur laser-welding solutions are available in both a concentrated masterbatch form, and as a ready-to-use compound. Both are offered as part of the Mevopur family of medical grade products and services. This means they have been manufactured in one of three global Clariant facilities certified to EN: ISO13485-2016 quality standards. Comprehensive regulatory testing and documentation includes pre-testing of raw-material ingredients to pharmaceutical and medical-device industry standards, DMF, formulation disclosure, etc. Change-control measures further minimize risk.
