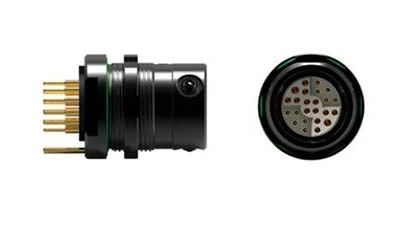

Alpharetta, Georgia – The MiniMax 06 ultra-dense miniature connector is rugged, ensures premium performance even in harsh environments, and is suited for handheld or body-worn applications when space is limited. It is available as a connector alone or with cable.
Technical specifications
- Up to 12 signal in less than 10mm diameter
- Density factor of 0.83 with standard 0.5mm contacts
- IP68 mated & unmated
- 5,000 mating cycles
- Data transfer up to 10Gb/s
- Three locking systems: push-pull, screw, quick-release
- Available pre-cabled with straight or angled bend relief overmold
Fischer Connectors' cable assembly facility in Alpharetta, Georgia, is ISO 9001 and 13485 certified and ITAR registered.
Source: Fischer Connectors Inc.
