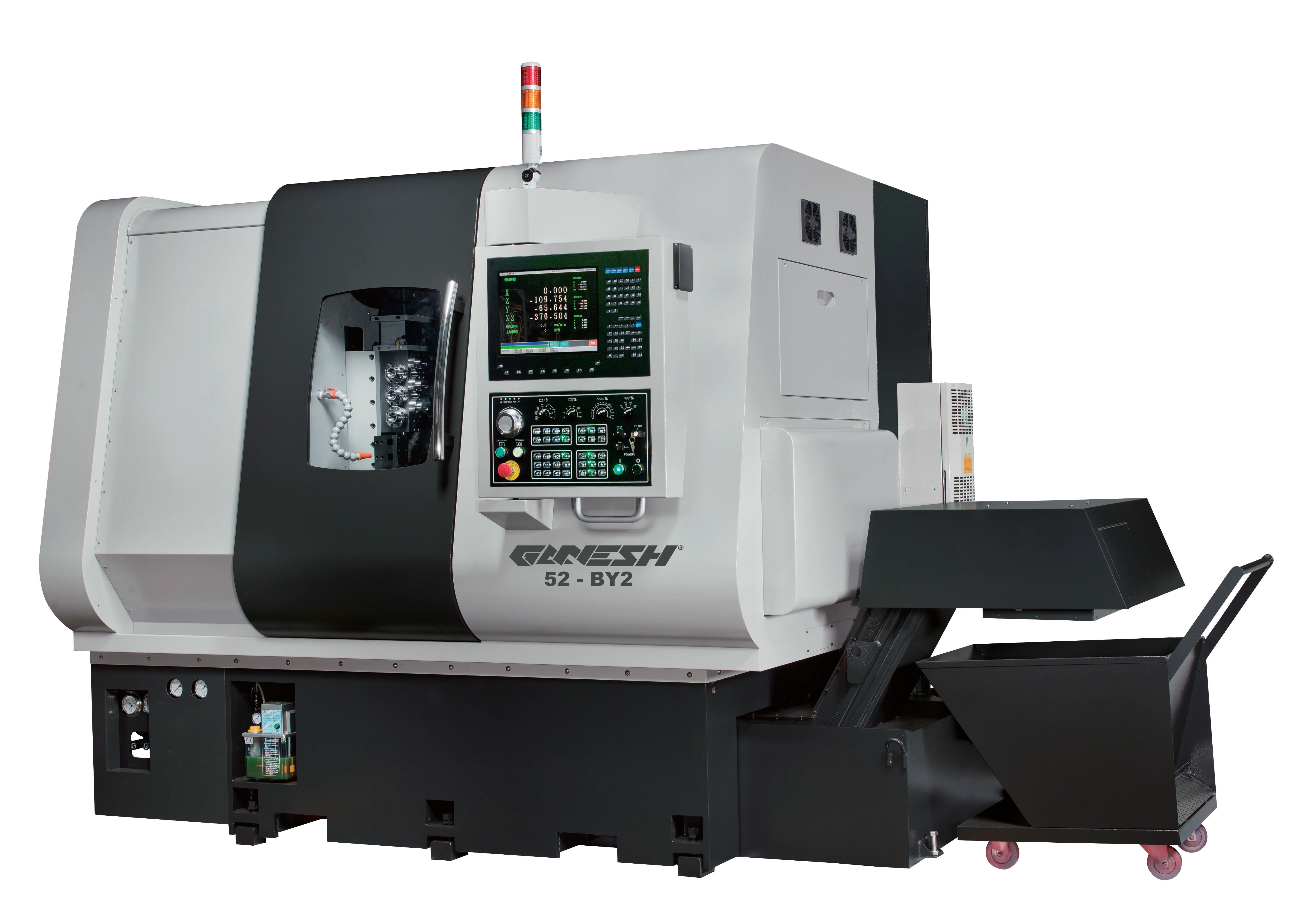

Ganesh Cyclone 52-BY2

9-AXIS CNC LATHE with Interference-Free Simultaneous Machining Efficiency Up to 40% more production output!



•2.0” Main Spindle Bar Capacity

•2.0” Subspindle Bar Capacity (2.0” pass-through capability)

•15-Horsepower 6,000-RPM Integral Main Spindle

•15-Horsepower 6,000-RPM Integral Sub Spindle

•Full Contouring “C” Axis on main spindle & subspindle

–not just positioning!

•36-Tool positions, with 18-Driven Tools, 12-Driven Angle Tools



SPINDLE –A2-5, 15-HP, 6,000 RPM, 2.0” Bar Capacity

•C-axis with full contouring capability and 360,000 indexing positions

•Dead-Length Collet Chuck –uses Traub 52 Collets (same as sub-spindle)

•5-Axis Machining Capability –X1, Y1, Z1, C1, & B-Axis (B-Axis positioning only)

•TOOLING -12-Angular Driven Tools, 5-Turning Tools, 5-Drill/Bore Tools

•6-ER-20 ½” capacity Angular or Cross-Working Live Tools

•6-ER-20 ½” capacity Angular or End-Working Live Tools

•5-Turning Stations –20mm tools, or ¾” tools with shims

•5-Static End Working Drill /Bore /Tap Tools

–using ½” capacity ER-20 Collet Chucks or 25mm tool bushings

•All Gear-Driven Live Tooling –No troublesome belts

•Rigid Tapping on all Live Tools



•Save up to 70% on cycle times when compared to a Twin-Spindle Single-Turret CNC Turning Center

“The most competitive way to win new work!”

•C-axis with full contouring capability and 360,000 positions

•Dead-Length Collet Chuck –uses Traub52 Collets (same as main-spindle)

•4-Axis Machining Capability –X2, Y2, Z2, C2 -Axis

TOOLING-3-Axial & 3-Radial Driven Tools, 4-Turning Tools, 4-Drill/Bore Tools

•3-ER-20 ½” capacity Cross-Working Live Tools

•3-ER-20 ½” capacity End-Working Live Tools

•4-Turning Stations –20mm tools, or ¾” tools with shims

•4-Static End Working Drill /Bore /Tap Tools

–using ½” capacity ER-20 Collet Chucks or 25mm tool bushings

•All Gear-Driven Live Tooling –No troublesome belts

•Rigid Tapping on all Live Tools

•Note: The B-axis tools can also machine some angular features on the back of the part

Integral A2-5 Main & Sub-Spindles

•15-HP

•6000 RPM

•5-Bearing Spindle (3-front, 2-rear)

•2” Bar Capacity

•Fast Acceleration and Deceleration

•Spindle Chiller Standard

•Beltless design for low maintenance

•Smooth, quiet operation

•No belt induced vibration



•Available in Regular and Extended Nose

•Ganesh has $110,000 in TraubCollet Inventory

With an extensive inventory of extended nose collets Same day shipment on orders received by 2pm PST.



•5C, 16C, 3J Dead-Length Collet Chucks

•Royal “Quick-Grip” QG-42, QG-65 Accu-Length

Long Parts ExtractionParts under 6” in length are collected by the standard parts catcher and placed on a parts conveyor belt, then the parts exit the machine via a chute on the head end of the machine. Longer parts use the optional long part extraction tube that uses a filler tube for each part diameter. Parts are collected in the tube and each successive part pushes the previous part at the end of the tube out onto a parts collection tray.

The part ejector and spindle coolant flush and air blast unit must be disconnected to use the long part ejector system.



For both Main & Sub-Spindle Driven Tool Systems

Mist Lubrication System helps cool the driven tool gear-train and keeps contaminates out for enhanced reliability.

Production Ready from the Start –Confirmed!

•Stroke-Control Position Confirmation on Main and Sub-spindle Ensures that collets are properly closed

•Cut-off Confirmation –uses M100

•Part Ejection from the Subspindle Confirmation

•Parts Catcher Clear Obstruction Confirmation

•Coolant Flow Confirmation –For both main and subspindle coolant pumps

Every command given has it’s completion confirmed!



•Full “Line Contact” roller bearings

for greater load distribution

•Twice the rigidity of ball-guided ways

•Twice the preload of ball-guided ways

•Greater load carrying capacity

•Superior accuracy



•Standard G-Code programming –use existing program geometry

•The B-Axis simply programs like a 3-axis mill when using G368

•Subspindle programs just like the main spindle, for axis sign designation

•Split-screen for main & subspindle program display, with tool path graphics

•Just add wait-states to existing program geometry and add S & M calls for appropriate spindle and M08/M09 for correct coolant pump

•Select Main, Subspindle, or Both programs to run during check-out

•Tool-Life Management with redundant tool call

•Alarms & Parameters in clear text with complete description

•Massive 256-MB memory + RS-232, RJ-485, & Compact Flash ports

•MPG Program Check-Out feature –Manual Hand Wheel Retrace:

•Turn MPG clockwise to advance program and watch for problems

•Turn MPG CCW when issue arises and axis moves will reverse to a clear point

•Fast Simultaneous Machining (Two tools in the cut at one time)

•36-Tool Stations –Have several jobs set-up on the machine!

•18-Driven Tool Stations –All gear-driven –no pesky belts!

•12-Angle tools (can be used as 6-Axial & 6-Radial Driven Tools)

•Tooling flexibility allows multiple jobs to be setup at the same time

•Dual “Y” Axis for 2 Tool Simultaneous Off-Center machining efficiency

•Puts you in the Most Competitive Position –Bury your Competition!

•Best value in the market for equivalent capability machine
