Haimer has hit the bullseye with its universal solid carbide end mills of the Haimer Mill family. For a long time, manufacturers, especially users in the areas of mechanical engineering, medical and contract machining, have been asking for a milling tool that they can use universally in steel and stainless steel, but also in cast iron, copper, and even hardened steel for various operations. The Haimer Mill tools, which are available as end mills according to DIN 6527 with sharp edge, corner radius, or chamfer – showed substantial results in most of the cases. The same cutting edge geometries are available as modular tools for the Haimer interchangeable head system, Duo-Lock.
Characteristics for Haimer Mill end mills are the unequal cutting edge, the center cutting design and a neck for higher cutting depth. As usual at Haimer, quality is our top priority: The end mills are supplied with an h6 shank tolerance and fine-balanced. The run-out accuracy is <10μm.
To offer users even greater benefits, the Haimer Mill range has been expanded even further. A short version with a cutting edge length of 1.25xD is suitable for all applications that require less cutting depths. It perfectly uses the cutting edges at low ap values and achieves high stability. Designed without neck clearance and reduced shank length, the short Haimer Mill version shows an unbeatable price-performance ratio like the standard version.

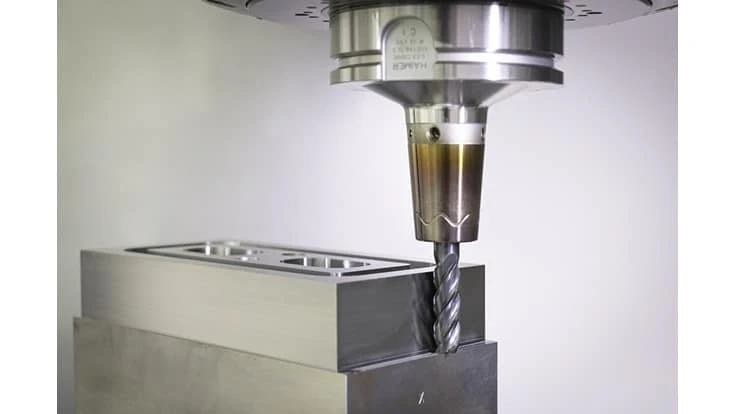

In addition to the short version, a long version is also available from now on – for all engineers who want to completely machine higher work piece walls. With the new 3xD Haimer Mill, consistent surfaces of high quality can be achieved for such requirements. The tool is also suitable for dynamic milling operations. This modern milling strategy uses the entire cutting edge length and achieves a very high metal removal rate.
The short version of the Haimer Mill is available in stock from 2mm to 6mm (3/32" to 3/8") diameter in 1mm (1/16") increments and from 8 to 20 mm (1/2" to 3/4") diameter in 2mm (1/8") increments. The long version of the Haimer Mill is available in stock from 6mm to 20mm diameter in 2mm increments. For the inch offerings, the Haimer Mill is available from 1/4" to 3/8" diameter in 1/16" increments and from 1/2" to 3/4" in diameter in 1/8" increments. Both metric and inch are optionally available with the integrated Haimer patented Safe-Lock pull-out protection.
