Bridgeport V480 vertical machining center

Bridgeport V480 vertical machining center

November 4, 2016

Hardinge Inc.

http://www.hardingeus.com/
Machining Centers Machining Centers CNC Horizontal & Vertical

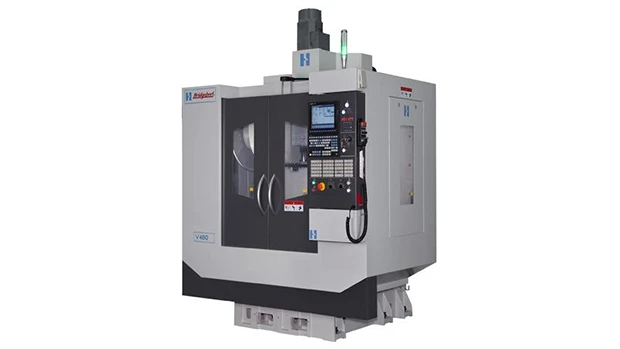

The Bridgeport V480 vertical machining center is a compact, rugged machine developed for applications that require speed as well as accuracy. The Bridgeport V480 is manufactured from quality sourced grey cast iron to the highest standards and possesses a level of reliability unsurpassed in the industry. A fully digital machine with a rapid traverse rate of 1,417ipm X, Y, and Z and acceleration rates of X: 6m/sec² / Y: 4.6m/sec² / Z: 3.75m/sec² provides a fast and accurate response to all your machining needs. The Bridgeport V480 is ideal whether you are a job shop or OEM, the machine was designed with flexibility and throughput in mind.

Key specifications

Milling Specification

Approx Machine Weight: 8,378 lb (3,800kg)

Floor Space: 106.96" x 104.69" x 101.26" (2,716mm x 2,659mm x 2,572mm)

Control Type:Mitsubishi M70

Tool Changer: 20 Tools

Spindle Speed: 10,000rpm (12,000/15,000 Option)

Spindle Horsepower: 7.5/10hp (5.5/7.5kW) (CT/30min)

Spindle Taper: No. 40

Working Surface: 23.6" x 15.8" (600mm x 400mm)

Travels: (X,Y,Z) 18.9" x 15.75" x 16.93" (480mm x 400mm x 430mm)



Source: Hardinge
