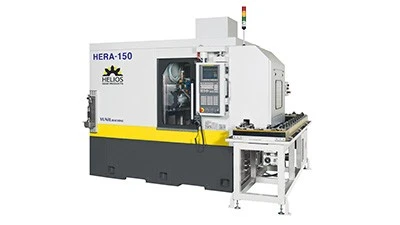

Helios Gear's HERA 150 CNC gear hobbing machine

Helios Gear's HERA 150 CNC gear hobbing machine

October 31, 2019

Helios Gear Products

Machining Centers

Helios Gear Products introduces the Helios Hera 150 gear cutting solution from YG Tech to North American gear manufacturers. This CNC machine offers compact vertical hobbing for gears up to 150mm (6") diameter.

The Hera 150 offers advanced technology such as FANUC 0i-MF control, X-axis linear scale for accurate repeatable control of size, work, and cutter spindles with direct drive torque motors, automatic retract of X-axis at power failure, and more. With a globally competitive price, proven domestic support from Helios, small footprint, and a unique combination of technical capabilities, the Hera 150 offers gear manufacturers a world-class hobbing solution.

The Hera 150 offers 6 CNC axes (7 with automation), a 3.5 module (7.3 DP) pitch rating, and 2,500rpm maximum hob speed. Additionally, this machine has a radial travel of 180mm (7.086") from 15mm (0.590") to 195mm (7.677") center distance between the work and hob axes, which allows a wide range of part sizes for flexible gear cutting. For long cutting tools, the Hera 150 offers hob shifting up to 180mm (7.087"). The machine has a maximum tailstock position of 600mm (23.622") and a total axial travel of 250mm (9.842"), which rounds out the machine’s versatility for manufacturers.

The base Hera 150 package also offers friendly dialog programming with visual examples to accelerate operator training. Operators can easily enter data on a large color touchscreen panel for cutting one or two gears on a single workpiece using single- or two-cut cycles with radial, axial, climb, or conventional hobbing (or any combination thereof). Additionally, crowning (lead modification) and automatic shifting over a damaged hob section are included. Manufacturers will appreciate the machine’s ease-of-use and how quickly new operators reach productivity.

The machine’s compact enclosure is enveloped at 3.200m (10.50ft) wide by 2.190m (7.19ft) deep by 2.480m (8.14ft) high. Additionally, the machine offers safety features such as electro-mechanical interlock and a splashguard door. The machine’s cast iron base provides superior dampening and stability for extreme cutting conditions.

The YG Tech Co. Ltd., owner of the Hera brand, has constructed gear cutting machine tools since 1963, and the Hera series started in 2004, having grown to hundreds of installations around the world. Helios Gear Products offers and supports the Hera line in North America with 30+ years of experience in machines, tools, engineering, and technical support.
