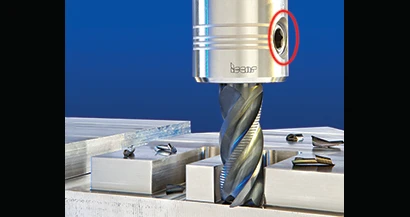

ISCAR is introducing unique chucks that combine user-friendly hydraulic clamping with side screw clamping for Weldon type shank tools.
The new HYDRO-SURE adapters can be used for standard Weldon shank tools – meaning that there is no need for special/costly tools and adapters which prevent tools from pullout.
Main Features
- High torque transmission when using standard Weldon type shank tools
- Ultimate axial and radial movement prevention of the cutter – tool pullout eliminated
- Very accurate concentricity of 0.003mm
- Very rigid peripheral hydraulic clamping also features vibration dampening
- Suitable for both heavy duty and finishing applications
- Excellent surface finishing and prolonged tool life in H.P.C. machining
The new HYDRO-SURE chucks are available for a tool diameter range of 16mm to 32mm:
- HSK A63:12mm to 25mm
- HSK A100: 12mm to 32mm
- BT40: 12mm to 25mm
- BT50: 12mm to 32mm
- DIN6987140:12mm to 25mm
- DIN6987150: 12mm to 32mm
