Mitutoyo America’s QS-L Vision series

Mitutoyo America’s QS-L Vision series

September 28, 2019

Mitutoyo America Corporation

http://www.mitutoyo.com/
Quality/Metrology

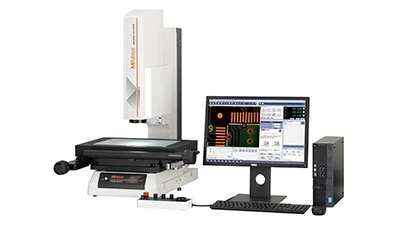

Mitutoyo America Corp.’s QS-L Vision Series features a high-definition, high-speed auto focus 3-megapixel camera, a four-quadrant LED ring light using high-intensity to provide better observation performance, and an interchangeable objective lens zoom for very sharp images.

Key features:
Instant image auto focus: Height measurement is performed efficiently as non-contact measurement requires the workpiece to be lightly fixed to the stage. Additionally, in contrast to a laser-equipped microscope, measurement is less influenced by the surface roughness of the workpiece.

Four-quadrant LED ring: Light LED sources are standard for all illumination methods. Color tone is kept constant even after illumination intensity adjustment so high color-reproducibility observation is possible. Additionally, four-quadrant reflected illumination is provided to enable contrast of surface features to be adjusted so that edge detection accuracy is maximized.

Interchangeable objective lens zoom unit: The newly designed 7X-zoom unit and optional interchangeable objectives provide magnification from 13X-184X on the monitor. A wide range of measurement is covered: wide view measurement at low magnification to micro-measurement at high magnification.
