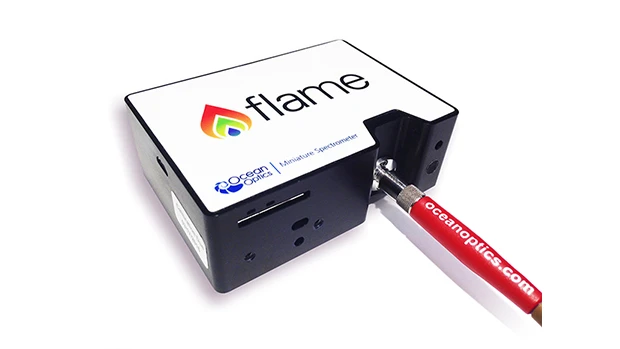

Dunedin, Florida – Ocean Optics has expanded its Flame spectrometer family. Flame-NIR delivers powerful near infrared spectroscopy in a compact, affordable instrument. With a cost about one-fourth that of a traditional NIR system, Flame-NIR pairs a high performance uncooled InGaAs array detector with a small optical bench for spectral response from 950nm to1,650nm. A replaceable slit design provides great flexibility for a wide range of NIR applications in biotechnology, medical diagnostics, and other life sciences. The Flame-NIR is suited to a variety of measurements including glucose monitoring, cancer diagnosis, and blood circulation, and is compact enough for integration into point-of-care devices.
Flame-NIR is sensitive, fast and easy to use. Unlike other lower-cost NIR spectrometers, Flame-NIR uses an InGaAs diode array detector for high sensitivity with concurrent measurement of all wavelengths. It also delivers high thermal stability and low unit to unit variation without compromising the flexibility and configurability that are the hallmark of modular, miniature spectrometers. Spectrometers come preconfigured or custom configured, with a replaceable slit design that enables users to adjust resolution and throughput on demand. Flame-NIR benefits from high precision alignment methods that elevate spectrometer performance for a range of demanding applications. Because its design is not dependent on thermo-electric cooling, it has relatively low power consumption. This design, coupled with a small footprint (89.1mm x 63.3mm x 31.9mm) and low weight (265g), make it make it ideal for integration into even small handheld instruments.
Operation of Flame-NIR is plug and play. A choice of USB or RS-232 communications, supported by drivers and software, makes it easy to integrate into almost any system. Indicator LEDs show continuous power and data transfer status. Flame-NIR is compatible with Ocean Optics’ range of light sources, optical fibers, sampling accessories and software.
Source: Ocean Optics Applications
