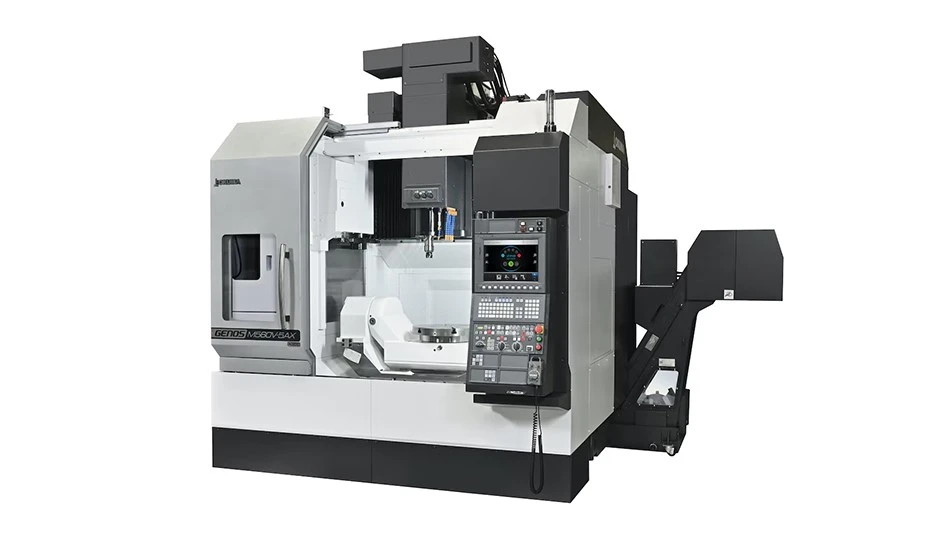

The new GENOS M560V-5AX evolved from two of the company’s best-selling vertical machining centers – the GENOS M560V which has become a standard-bearer in the industry, and the GENOS M460V-5AX which launched in 2017 as an answer to a market need for an affordable, compact 5-axis vertical machine, with no compromise on the design or accuracy.
Machine design
The GENOS M560V-5AX is built with a double-column machine design, affording it maximum structural integrity. The machine offers an impressive working envelope with a 500mm table and wide axis travels (X: 1,050mm, Y: 560mm, Z: 460mm), while still maintaining a compact footprint of 2,515mm x 3,750mm. Further optimizing the machine’s design, the GENOS M560V-5AX includes a trunnion table positioned parallel to the front of the machine which allows for easier access to the table and good visibility during machining. This, and other user-friendly features on the machine, reduce physical burden on the operator. Additionally, the machine comes standard with a 60 ATC (automatic tool changer) magazine and can also accommodate tools measuring up to 400mm in length.
Built-in energy savings features
The GENOS M560V-5AX comes standard with Okuma’s Thermo-Friendly Concept, an on-board thermal and energy management technology to support both stable, high-accuracy machining and reduce energy consumption.
Key Specs of the GENOS M560V-5AX vertical machining center:
- Table Size: 500mm
- Max Workpiece Dimensions: 700mm x 500mm
- Spindle Maximum Speed: 15,000min?¹
- Spindle Motor Power: 22/18.5 kW
- Axes Travel: 1,050mm (X-axis), 560mm (Y-axis), 460mm (Z-axis)
- Floor Space: 2,515mm x 3,750mm (w x d)
- Weight: 10,000kg
