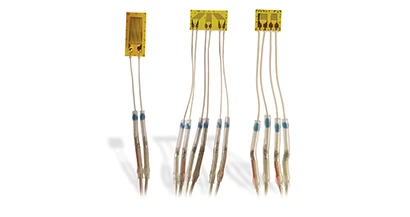

Linear pattern precision gages with minature and medium length grids are for general purpose and stress analysis applications. Available with either two 1m leads or three 3m leads and 120 Ω or 350 Ω resistance. All models are compensated for steel.
The planar XY pattern (0 / 90°) allows precision strain measurement by eliminating the errors often associated with a stacked XY pattern. These gages are available with either two 1m leads or three 3m leads per grid and are compensated for steel.
The planar rosette pattern (0 / 45°/ 90°) allows precision strain measurement by eliminating the errors often associated with a stacked pattern. These gages are available with either two 1m leads or three 3m leads per grid and are compensated for steel.
