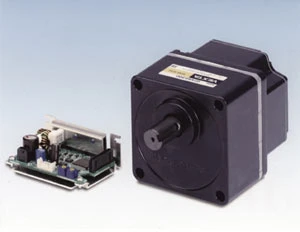

Oriental Motor USA Corp. introduces the new BLH speed control package composed of a brushless DC motor and a 24 VDC compact driver board. The RoHS compliant BLH series encompasses four models ranging from 15W, 30W, 50W and 100W output. The BLH possesses speed regulation accuracy of ±0.5%. The BLH brushless DC motor can be operated at precise speeds from 100rpm up to 3,000rpm.
There are two gearhead types available: the parallel shaft gearhead and the hollow shaft flat gearhead, with a wide variety of gear ratios. The hollow shaft flat gearhead has a higher permissible torque ratio at higher gear ratios. The 30W, 50W, and 100W shaft gearhead motor packages are supplied in a combination motor gearhead package that is also available separately to facilitate changes or repairs.
Motor only round shaft types are available in all four models while the pinion shaft types are available in the three larger models with separate associated gearheads. Extension cables and external potentiometers are also available for all models as an option.
