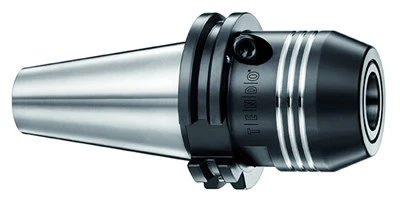

Morrisville, North Carolina - Schunk’s Tendo E Compact toolholders can safely transfer torques of up to 520Nm at a 20mm clamping diameter and are perfectly suited for high volume cutting.
With vibration damping and precise run out accuracy of less than 0.003mm (0.0001") at 2,5 x D, the TENDO E compact protects the machine spindle and the cutting tool from damage. The hydraulic expansion toolholder works well across the application range from rough milling to finish operations such as reaming and fine milling.
In roughing operations, tool cost reductions of up to 40% have been achieved with this system. Tools can be changed with an Allen key. Common spindle connections are available, including interfaces HSK-A63, SK40, BT40, CAT40, and CAT50.
