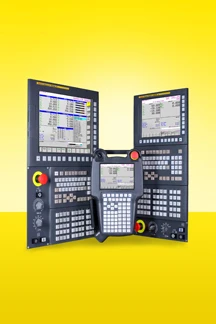

Series 30i-Model B CNCs and Power Motion i-Model A CNC
For advanced smooth and accurate simultaneous five-axis high-speed machining, the Series 30i-B/31i-B5 CNCs boast the new High-Speed Smooth TCP with new fairing technology. This drastically reduces cycle times while improving part accuracy and quality. In addition, the Series 30i-MODEL B controls (this includes 30i-B, 31i-B, 31i-B5, 32i-B & 35i-B) offer a newly enhanced high-speed and large capacity, multi-path PMC offering large scale sequence control with a maximum of five concurrent independent ladders. Execution of common instructions is over 2.5 times faster than previous generation, with additional capability of high-speed module executing every 1ms.
The Power Motion i–MODEL A CNC features multi-axis and multi-path functions with a maximum four control paths, 32 total control axes, and four simultaneous control axes - up to 16 axes by PMC axis control function that can be executed independently for each axis. It is also optimal for applications with large servo motors – up to 10 large servo motors in one CNC. Applications include: press machines, die cushion, loaders, wire saws and winding machines.
The iPendant for CNC is a handheld operator’s unit that offers mobile operability for large machine tools. The iPendant keyboard provides for both MDI data operations as well as well as manual machine control operation as integrated by the machine builder. Touch screen display is also available. Three position enabling switch on back can be integrated as required per safety requirements. Built in USB port supports I/O of data to standard USB flash drives.
FANUC FA America
1800 Lakewood Blvd.
Hoffman Estates, IL 60192
Phone: (888) 326-8287
www.fanucusa.com
