StepSERVO motors


Vaughan, Ontario - Ideally suited for applications such as packaging and labeling, automated test and measurement, automated assembly and life sciences, StepSERVO provide the next evolution integrated step motor technology. Starting with a proven integrated motor design, we add a high-resolution incremental encoder and closed-loop servo firmware to create a motor that offers the best step motor performance available today. StepSERVO motors offer the same high-torque-at-low-speed and excellent holding torque characteristics of open loop stepping motors with the advantages of true closed-loop control. These advantages include the ability to create peak torques from the motor up to 50% higher than the normal torque range of the same step motor running open loop. Closed-loop also means the motor only draws current when it needs it, so step motors now run cooler than ever before.

Click on the following link to view a YouTube Video on the StepSERVO integrated stepper motor.

StepSERVO motors feature:

  • NEMA frame size 17, 23, and 24. StepSERVO motors utilize 5000 line incremental encoders (20,000 counts/rev)
  • NEMA frame size 11. StepSERVO motors utilize 1024 line incremental encoders (4,096 counts/rev)
  • Closed-loop servo control using high torque step motors
  • High acceleration for faster machine cycles and greater productivity
  • Energy efficient, cool running
  • All-in-one compact solution
  • IP65 versions for wet and dusty environments
  • Stand-alone operation (stored Q programming)
  • EtherNet/IP industrial networking option
  • CANopen fieldbus option
  • Modbus RTU option for easy PLC/HMI connection

There are three types of StepSERVO to choose from
SSM integrated steppers feature:

  • NEMA 23 frame size motors
  • Ethernet (RJ-45) port for programming
  • EtherNet/IP industrial networking standard
  • Three motor lengths (stack lengths) available to provide the highest amount of torque in the shortest motor possible

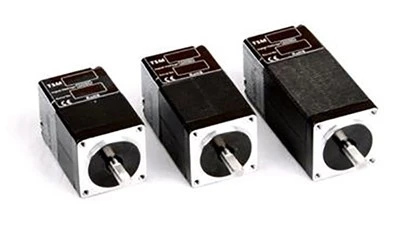

TSM integrated steppers feature:

  • NEMA 11 (New!), NEMA 17 and NEMA 23 frame size motors
  • RS-232 or RS-485 port for programming and streaming commands
  • Control options including CANopen fieldbus control, digital step & direction control, analog velocity mode, streaming commands and stand-alone operation using stored Q programs.
  • Three motor lengths available in each frame size to provide the highest amount of torque for each length

TXM integrated steppers feature:

  • IP65 rated for wet and dusty environments
  • NEMA 24 frame size motors
  • RS-232, RS-485 or Ethernet port (M12) for programming, streaming commands and fieldbus/networking
  • Control options include CANopen fieldbus control, EtherNet/IP industrial networking, digital step & direction control, analog velocity mode, streaming commands and stand-alone operation using stored Q programs.
  • Two motor lengths available to provide both a lower torque and a higher torque option depending on application requirements

Source: Electromate
