Tube-extrusion tooling

Tube-extrusion tooling

June 5, 2017

Guill Tool & Engineering Co., Inc.

http://www.guill.com
Design Components Materials

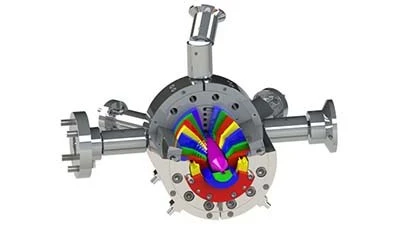

The latest generation of the Series 800, 2-to-6 layer extrusion tooling is designed to produce the highest quality, highest material-efficient 1/8” to 6” OD tubing for medical, automotive, appliance, and industrial applications.

The redesigned Series 800 produces smooth extrusion and layer definition of Fluropolymer and other materials for all multi-layer, multi-lumen tubing for fuel line constructions. The design further allows thin layer combinations of polymers and adhesives to 0.02mm or less.

An extensive line of crossheads and inline tubing dies in fixed and adjustable center are available for single- or co-extrusion applications. The tooling is designed to process all compounds and features patented, precision Feather Touch Concentricity adjustment, the Seal Right System, which combines with the Feather Touch system to eliminate polymer leaking.
