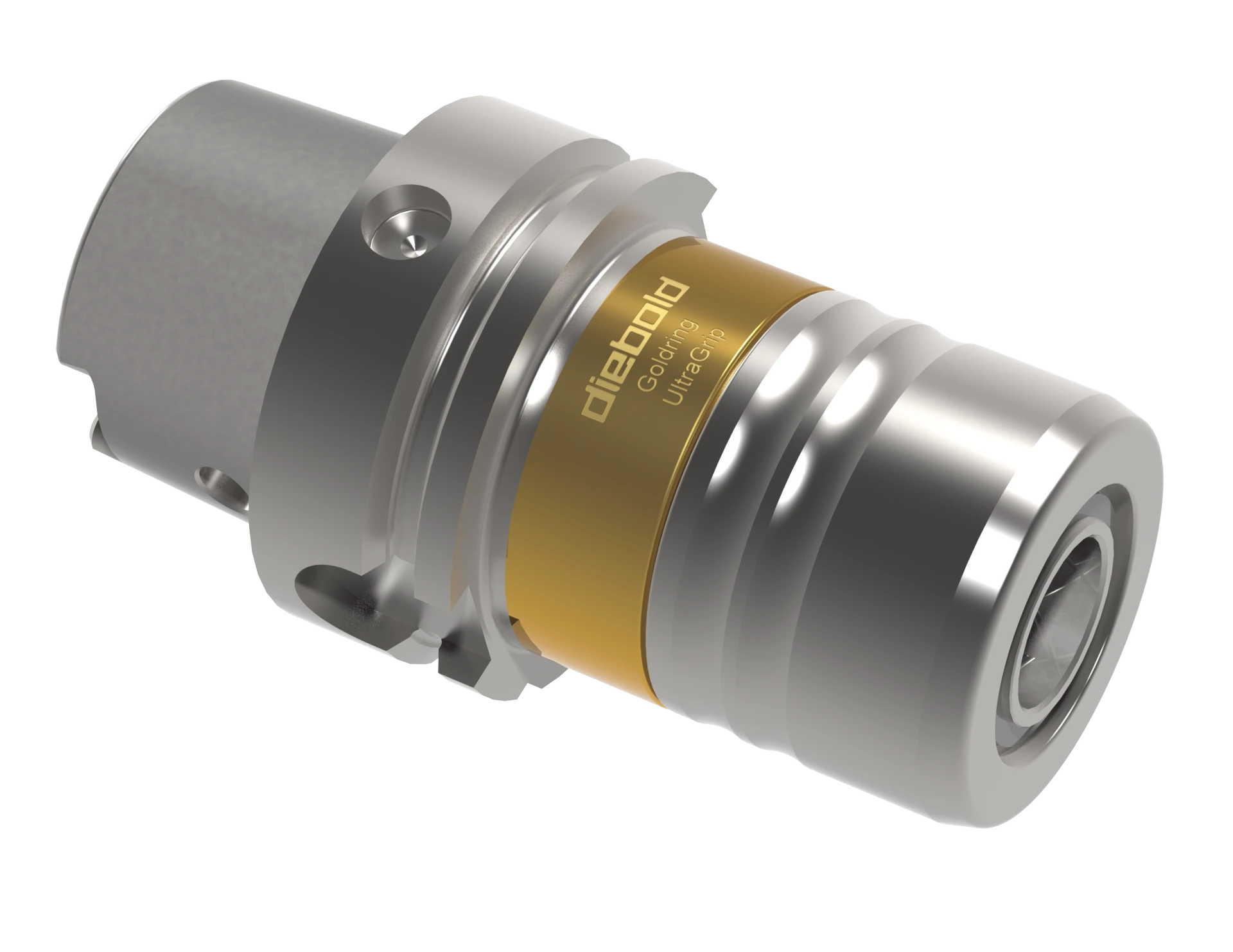

Bilz Tool Co. USA is proud to introduce a new Diebold product called UltraGrip. This unique
product combines the best possible cutting tool run-out (TIR) with maximum clamping force.
This ultra high precision milling chuck is the right product for small to medium volume
metalworking manufacturing operations. UltraGrip provides maximum tool accuracy with
radial load force rigidity for maximum metal removal rates in high precision applications.
Accuracy and productivity do not need to be expensive. The revolutionary UltraGrip System
provides a concentricity tolerance of ≤ 3 micron while providing superb cutting tool clamping
forces. The assembled system – toolholder and cutting tool provides a maximum TIR of ≤ 3
microns for the most accurate milling chuck system on the market today. The UltraGrip
system is the answer for your HPC – High Performance Cutting with high cutting depth, high
feed rates, and extreme cutting forces.
Combining cutting tool accuracy (TIR), vibration damping features, and high clamping forces
makes this product the right toolholder for most high precision applications in the Medical,
Aerospace, and Die/Mold industries. These holders are all balanced with G2.5 accuracy and
are available in CAT, BT, and HSK tool tapers.
If you are frustrated with the lack of radial forces that hydraulic chucks can bear,
the lack of TIR accuracy that other tool clamping systems like end mill holders, collet chucks,
and other milling chucks offer, then the UltraGrip System is the right system for your shop
and your applications.
