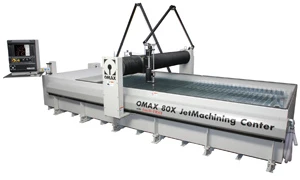

Ideal for precision machining of larger or multiple parts, the OMAX 80X JetMachining Center is equipped with the patent pending Intelli-TRAX, an innovative drive system, developed specifically for abrasive waterjet machining to ensure high accuracy. The drive is fully enclosed inside coated steel covers, making the 80X a robust and reliable system that is well suited for harsh environments and requires little maintenance. Additionally, the Intelli-TRAX traction drive enables faster traverse speeds than traditional drive systems and greatly reduces processing times when machining multiple and nested parts.
The 80X features an X-Y travel of 165" x 80" (4,191mm x 2,032mm), and comes standard with OMAX Intelli-MAX Software, which runs on the Windows 7 Ultimate operating system. The system can calculate the precision of the velocity of a tool path at over 2,000 points per inch, allowing for complete control over the motion of an abrasivejet, and enabling precise, rapid machining.
Like all OMAX JetMachining Centers, the 80X has the ability to cut a wide variety of materials, including ceramics, composites, plastic, glass and stone, as well as metals such as aluminum, tool steel, stainless steel, mild steel and titanium with an accuracy of motion up to +/- 0.003" (0.076mm).
The 80X is equipped with a 50hp EnduroMAX pump, and the Tilt-A-Jet cutting head accessory.
The EnduroMAX pump provides double the operating life of previous pumps, and makes for faster part processing, lower operating costs, and easier maintenance. It maximizes machine uptime with its 1,000-hour operating range between required pump rebuilds when run at 55,000psi (3,800 bar). However, the pump can also effortlessly run continuously at 60,000psi (4,100 bar). The EnduroMAX pump operates at 90% efficiency, as opposed to the 60% to 70% range of intensifier pumps. This means it delivers more horsepower to the nozzle than even 87,000psi + intensifier pumps for the same installed electric horsepower.
Higher nozzle horsepower due to 90% efficiency of the EnduroMAX direct drive pump allows OMAX machines to process parts faster by delivering nearly the full motor power to the nozzle. EnduroMAX are the most efficient waterjet pumps developed, regardless of pressure. They are offered in various horsepower ratings. The available models are the 3060 (30 hp), 4060 (40 hp), and 5060 (50 hp).
The Tilt-A-Jet cutting head allows OMAX JetMachining Centers to achieve virtually zero taper. By automatically calculating and adjusting the angle of the nozzle through the controller software, the Tilt-A-Jet transfers taper from the part being cut to the scrap material.
The MAXIEM 1530 will be equipped with a high-pressure direct drive 50,000psi pump in a 30hp configuration and an A-Jet multi-axis accessory that cuts beveled edges and angles with an articulated jet. Show visitors will see how the accessory readily cuts various angles in one tool path by simply determining the cutting parameters in the machine’s easy-to-use controller software. Like the OMAX 80X JetMachining Center, the MAXIEM 1530 features the critically acclaimed Intelli-MAX Software and Intelli-TRAX precision drive system.
With a slat bed size of 151" x 69" (3,835 mm x 1,752 mm) and a maximum table load of 250 pounds/square foot (1,221 kg/square meter), the MAXIEM 1530 productively cuts a wide variety of materials without creating heat-affected zones or mechanical stresses. By cutting parts directly from the plate, the MAXIEM 1530 also dramatically reduces setup time and material usage.
The MAXIEM product line’s X-Y cutting travel ranges from 30" x 30" (762mm x 762mm) to 160" x 79" (4,064mm x 2,006mm).
About OMAX
Headquartered in Kent, Washington, OMAX Corporation is the world leader in abrasivejet machining. Each OMAX JetMachining system and MAXIEM JetCutting Center is powered by the company’s innovative control software, bringing affordable abrasivejet technology to an expanding and diverse group of industries. For more information on OMAX products and accessories, contact Sandra McLain at 800.838.0343 or visit www.omax.com.
